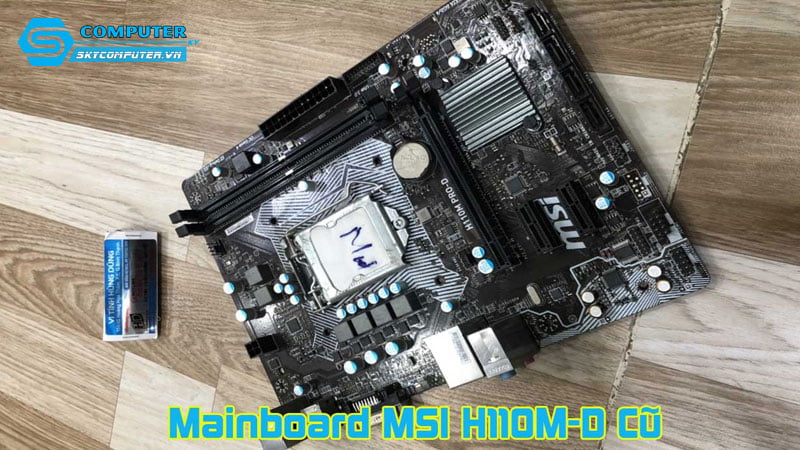

Mainboard MSI H110M-D Cũ


Quà tặng / Khuyến mãi
⭐ Giảm 10% khi Build PC

Chính sách bán hàng

Dịch vụ khác

Mô tả

Thông số kỹ thuật

CPU• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151* Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset• Intel® H110 Chipset
Main Memory• 2 x DDR4 memory slots, support up to 32GB- Supports DDR4 2133 MHz• Dual channel memory architecture• Supports Non-ECC, un-buffered memory• Supports Intel® Extreme Memory Profile (XMP)
Slots• 1 x PCIe 3.0 x16 slot• 2 x PCIe 3.0 x1 slots
Onboard Graphics• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
On-Board SATA• Intel® H110 Chipset• 4 x SATA 6Gb/s ports
USB• Intel® H110 Chipset- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
Audio• Realtek® ALC887 Codec• 7.1-Channel High Definition Audio
LAN• 1 x Realtek RTL8111H Gigabit LAN controller
Back Panel I/O Ports– 1 x PS/2 keyboard/ mouse port- 4 x USB 2.0 ports- 2 x USB 3.1 Gen1 ports- 1 x DVI-D port- 1 x LAN (RJ45) port- 3 x audio jacks
Internal I/O Connectors– 1 x 24-pin ATX main power connector- 1 x 4-pin ATX 12V power connector- 4 x SATA 6Gb/s connectors- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)- 1 x 4-pin CPU fan connector- 1 x 4-pin system fan connectors- 1 x Front panel audio connector- 2 x Front panel connectors- 1 x TPM module connector- 1 x Serial Port connector- 1 x Chassis Intrusion connector- 1 x Clear CMOS jumper
Dimension• 9.3 in. x 7.1 in. (23.5 cm x 18.0 cm) Micro-ATX Form Factor
Mounting• 6 mounting holes
