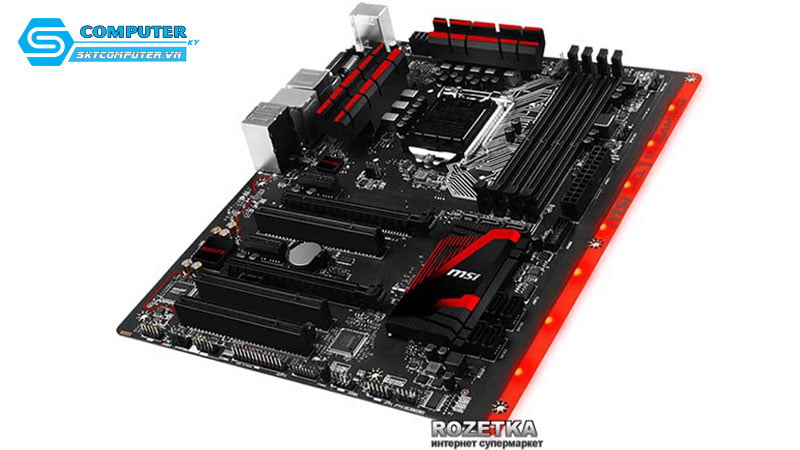

Mainboard MSI B150-A Cũ

590.000

Quà tặng / Khuyến mãi
⭐ Giảm 10% khi Build PC

Chính sách bán hàng

Dịch vụ khác

Mô tả

Thông số kỹ thuật

Hãng sản xuấtMSI
ModelB150M GAMING PRO
ChipsetIntel® B150
CPU hỗ trợ• Supports 6th Gen Intel® Core® i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
RAM hỗ trợ• 2 x DDR4 memory slots, support up to 32GB
– Supports DDR4 2133 MHz *
• Dual channel memory architecture
* Please refer to www.msi.com for more information on compatible memory.
Đồ họa• 1x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz, 2560×1600@60Hz
• 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1x VGA port, supports a maximum resolution of 1920×1200@60HzHỗ trợ Công nghệ AMD CrossFireX™
Lưu trữ• 6 x SATA 6Gb/s ports*
Audio• Realtek® ALC887 Codec
– 7.1-Channel High Definition Audio
LAN• 1 x Intel® I219-V Gigabit LAN controller
Khe cắm mở rộng• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots
USB• 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USBconnector)
• 4 x USB 2.0 (High-speed USB) ports (4 ports available through the internal USB connectors)
Kết nối I/O bên trong– 1 x 24-pin ATX main power connector
– 1 x 4-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 2 x 4-pin system fan connectors
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper
Kết nối bảng phía sau– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 2 x USB 2.0 ports
– 4 x USB 3.1 Gen1 ports
– 1 x DVI-D port
– 1 x HDMI™ port
– 1x VGA port
– 1 x LAN (RJ45) port
– 3 x audio jacks
