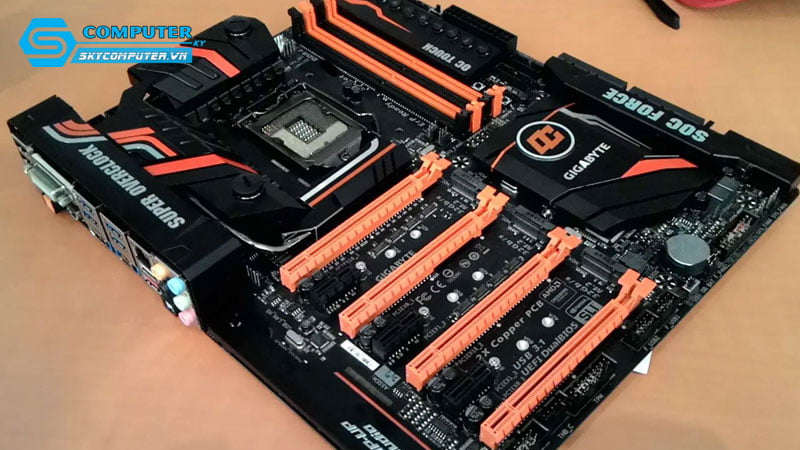

Mainboard Gigabyte Z170X-SOC FORCE cũ

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^®processors/ Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel^® Z170 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 3866(O.C)/3733(O.C)/3666(O.C) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x Mini-DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.2 version.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
   * Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

1. Realtek^® ALC1150 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. Intel^® GbE LAN chip (10/100/1000 Mbit)

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
   * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
3. 3 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)

1. Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA^® SLI™ technology

1. 3 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-9 Internal Connectors,” for the supported configurations with the M.2, SATA Express, and SATA connectors.

ASMedia^® ASM1061 chip:

1. 2 x SATA 6Gb/s connectors (SATA3 6~7), supporting AHCI mode onlyŠŠ
