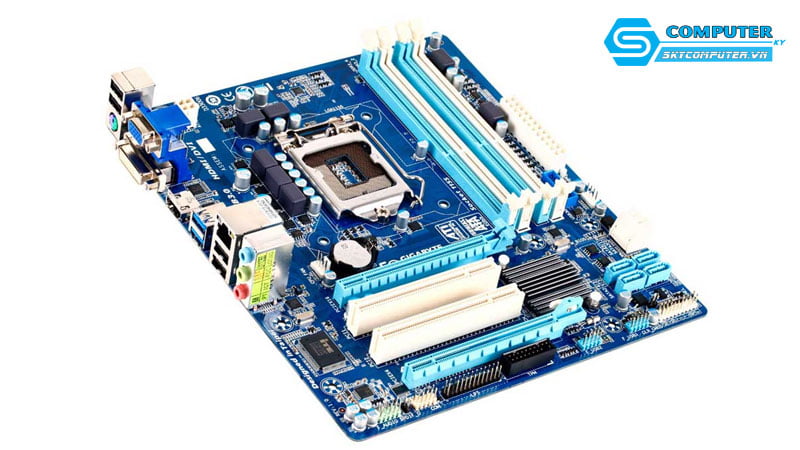

Mainboard Gigabyte B75 Cũ


Quà tặng / Khuyến mãi
⭐ Giảm 10% khi Build PC

Chính sách bán hàng

Dịch vụ khác

Mô tả

Thông số kỹ thuật

Category: MAINBOARD.

  • All new design of Ultra Durable 4 classic
  • Supports 3rd Gen. Intel22nm CPUs and 2nd Gen. Intel Core™ CPUs (LGA1155 socket)
  • Dual UEFI BIOS protection with 3TB+ HDD boot up capability
  • PCI Express Gen 3.0 support
  • Onboard mSATA slot for mSATA SSDs
  • Industry’s Leading All Japanese Solid Capacitor Design
  • GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
  • 2-way CrossFireX™ multi-GPU support
  • DVI interface for smoother HD video playback
  • GIGABYTE On/Off Charge™ for USB devices


CPU1.     Support for Intel Core™ i7 processors/Intel Core™ i5 processors/ Intel Core™ i3 processors/IntelPentium processors/IntelCeleron processors in the LGA1155 package

2.     L3 cache varies with CPU

(Some Intel Core™ processors require a graphic card, please refer “CPU support List” for more information.)

Chipset1.     Intel B75 Express Chipset
Bộ nhớ1.     4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.2.     Dual chan nel memory architecture3.     Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you mu st install an Intel 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.4.     Support for non-ECC memory modules5.     Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you mu st install an Intel 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.(Please refer “Memory Support List” for more information.)
Card đồ họa tích hợpIntegrated Graphics Processor:

1.     1 x D-Sub port

2.     1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.

Âm thanh1.     Realtek ALC887 codec

2.     High Definition Audio

3.     2/4/5.1/7.1-chan nel
* To configure 7.1-chan nel audio, you have to use an HD front panel audio module and enable the multi-chan nel audio feature through the audio driver.

4.     Support for S/PDIF Out

LAN1.     Atheros GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng1.     1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.2.     1 x PCI Express x16 slot, running at x4 (PCIEX4)3.     3 x PCI Express x1 slots
(The PCIEX4 slot and all PCI Express x1 slots conform to PCI Express 2.0 standard.)4.     2 x PCI slots
Công nghệ đa card đồ họa1.     Support for AMD CrossFireX™ technology
Giao diện lưu trữChipset:

1.     1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

2.     4 x SATA 3Gb/s connectors (SATA2 1~4) supporting up to 4 SATA 3Gb/s devices

3.     1 x mSATA connector


1.     Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

2.     Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong1.     1 x 24-pin ATX main power connector

2.     1 x 4-pin ATX 12V power connector

3.     1 x SATA 6Gb/s connector

4.     4 x SATA 3Gb/s connectors

5.     1 x mSATA connector

6.     1 x CPU fan header

7.     3 x system fan headers

8.     1 x front panel header

9.     1 x front panel audio header

10.  1 x S/PDIF Out header

11.  1 x USB 3.0/2.0 header

12.  2 x USB 2.0/1.1 headers

13.  1 x serial port header

14.  1 x Clear CMOS jumper

15.  1 x Trusted Platform Module (TPM) header

Kết nối bảng phía sau1.     1 x PS/2 keyboard/mouse port

2.     1 x D-Sub port

3.     1 x DVI-D port

4.     2 x USB 3.0/2.0 ports

5.     4 x USB 2.0/1.1 ports

6.     1 x RJ-45 port

7.     3 x audio jacks (Line In/Line Out/Microphone)

Điều khiển I/O1.     iTE I/O Controller Chip
Theo dõi phần cứng1.     System voltage detection

2.     CPU/System temperature detection

3.     CPU/System fan speed detection
