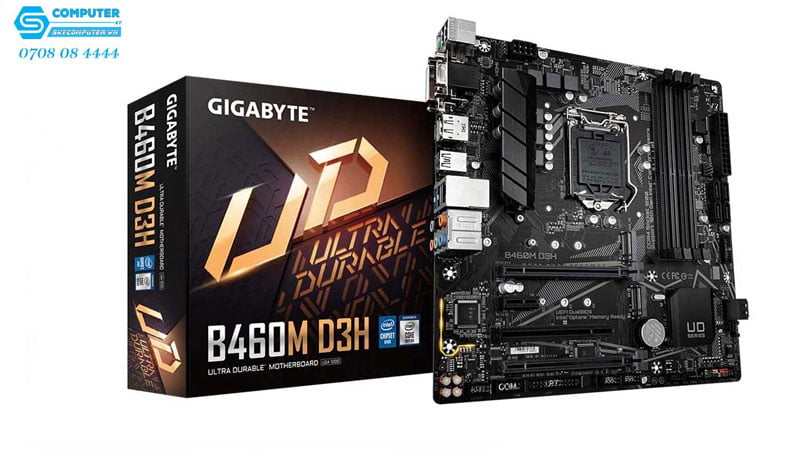

Mainboard Gigabyte B460M D3H cũ

1.750.000

Quà tặng / Khuyến mãi
⭐ Giảm 10% khi Build PC

Chính sách bán hàng

Dịch vụ khác

Mô tả

Thông số kỹ thuật

CPU– Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package

– L3 cache varies with CPU

ChipsetIntel® B460 Express Chipset
Memory– Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules- Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory- Dual channel memory architecture

– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

– Support for Extreme Memory Profile (XMP) memory modules

Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

The DVI-D port does not support D-Sub connection by adapter.

1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

AudioRealtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

LANIntel® GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x PCI slot
